Epoxy Garage Floor Pros and Cons for Austin Heat, Clay and Daily Use

An epoxy garage floor is a two-part coating, resin plus hardener, that reacts into a hard film on prepared concrete, and the makers' own documents tie how it performs in Austin to four conditions: how dry the slab is, how well it was ground, how hot the garage runs during the cure and how much sun reaches the floor. The makers print both sides. Rust-Oleum's own product comparison says an epoxy coating "provides greater protection than garage floor paint," while the same industry's documents warn that epoxy can yellow in sunlight, that standard epoxy is not moisture-tolerant and that a full cure takes days.

Below, each strength and each weakness comes with its cause and the document that states it. Austin's own conditions sit beside the data sheets: NOAA's normals for Camp Mabry and Austin-Bergstrom, the NRCS descriptions of the clay east of the Balcones Escarpment and the limestone west of it, and the state and federal rules that touch the work. Every local figure, with its source and date, is gathered on our Austin garage floor data page. This guide prints no prices; the published national ranges are on the epoxy flooring cost page.

What an epoxy garage floor does well, in the makers' own terms

Epoxy hardens by chemistry rather than by drying, and that is the root of its toughness. Sherwin-Williams describes 100 percent solids epoxy as "a resin and hardener, which are blended together," and notes that the resin alone "would remain a near liquid indefinitely." Stonhard separates the two families: epoxy paints rely on evaporating solvents, while epoxy coatings undergo "a chemical reaction known as curing." The gap shows up in volume solids, meaning the part of each wet gallon left behind as cured film once any water or solvent has gone. Rust-Oleum's one-part "epoxy" floor paint lists its resin as "Modified Acrylic Polymer" at 32.6-32.8 percent solids by volume on technical data ROC-109, while its two-part, solvent-based EpoxyShield floor coating lists 69.1 to 72.1 percent on ESH-06.

Thickness is the second advantage. Film is counted in mils, and each mil is one thousandth of an inch. ICRI Guideline 310.2R lists "Thin films, 4 to 10 mils" and "High-build coatings, 10 to 40 mils" among its bands, with sealers thinner still. Sherwin-Williams says a 100 percent solids epoxy film "can be 10 mils or more," depending on the product and how it is applied, whereas Rust-Oleum's ROC-109 sheet puts its paint at 1.0 to 1.5 mils per coat, dry, where the concrete is smooth. A second Sherwin-Williams article ranks floor systems by build, with thickness, chemical resistance and life expectancy rising "as one moves from coatings, to slurries, to broadcast systems," the ones in which flake or quartz is thrown into the wet resin.

Hard wear and easy cleaning round out the list. Euclid Chemical's bulletin CP-22 says epoxy and urethane coatings "are much more crosslinked than cure & seals and are therefore less likely to tire mark." Laticrete says its polyaspartic and epoxy systems are nonporous, so dirt and contaminants stay on the surface, and Sherwin-Williams says a poured epoxy floor needs "only minimal upkeep, with no waxing." The federal definition at 40 CFR 59.401 describes a floor coating as one with "a high degree of abrasion resistance," and Sika lists garages among the medium to heavy duty uses of its Sikafloor-264 epoxy.

The downsides of epoxy, each with its cause

Each weakness of an epoxy garage floor traces to a cause the makers name, and most of those causes sit outside the can: sunlight, water vapor rising through the slab, hot tires, water on a smooth finish, the days a full cure takes, and the preparation underneath. None rules epoxy out on its own. Each is a reason to fit the system to the garage, and sunlight and drive-on time are the two that can point toward a polyaspartic floor coating for the top layer instead of an epoxy one.

Preparation is written into the makers' own paperwork. The one-year limited product warranty in Sherwin-Williams' flake system package covers the material, offers replacement product as the remedy, and excludes "improper surface preparation" and "conditions related to the substrate." A federal guide makes the same point on a larger scale: the Bureau of Reclamation's coatings guide quotes a Federal Highway Administration estimate that "up to 80 percent of all premature coating failures on bridge structures are partially or completely caused by deficient surface preparation or application practices." That is why we grind and test before we choose a coating, not after.

• UV yellowing: Sherwin-Williams prints "Epoxy coatings may darken or yellow following application and curing" on ArmorSeal 1000 HS, Sika says Sikafloor-264 "will discolor over time when exposed to sunlight," and Citadel's comparison table answers "No" for epoxy UV resistance.
• Moisture from below: Sherwin-Williams writes that standard epoxy systems "are not moisture-tolerant," and Sika explains that vapor trapped under an impermeable film can build enough pressure "to blow sections off or cause other forms of damage like blisters."

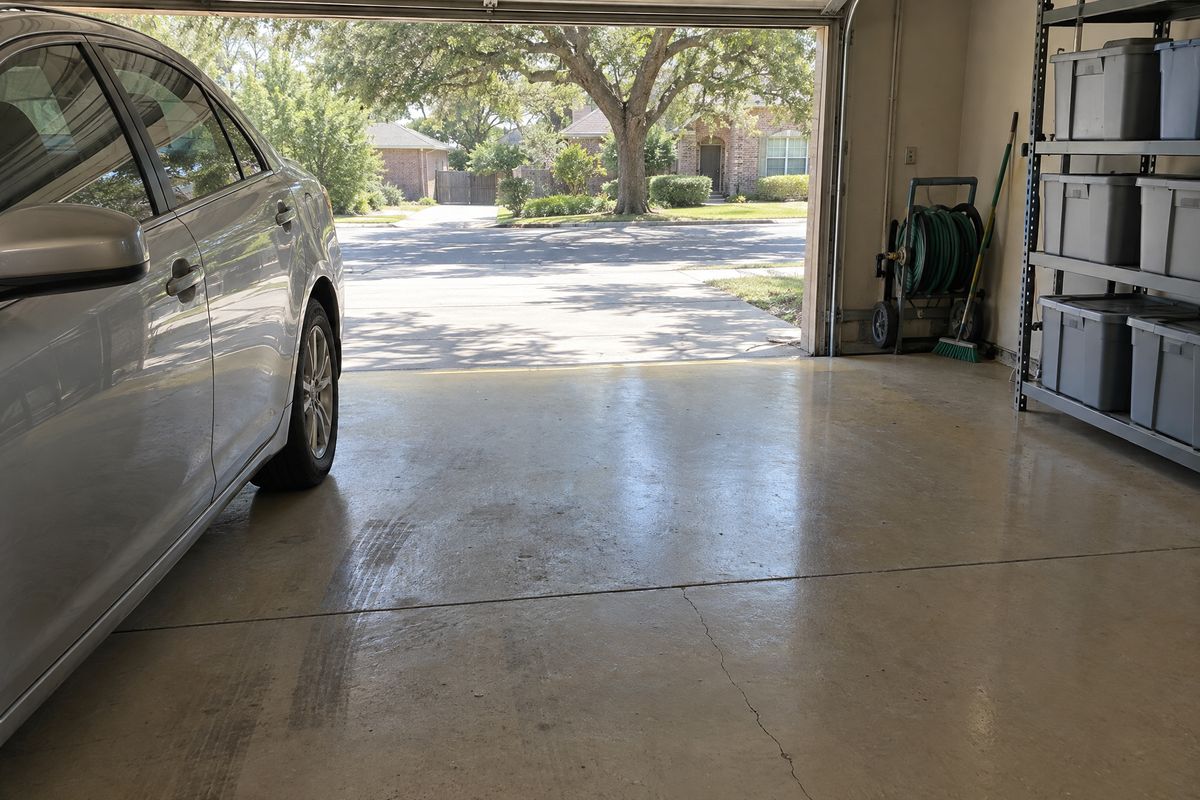

• Hot tires: Euclid Chemical traces tire marks to plasticizers that soften and leach out of hot rubber, worst on lightly crosslinked acrylics, and Sherwin-Williams rates its acrylic ArmorSeal Tread-Plex, applied at 1.5 to 2.0 mils dry, "Not recommended for areas subject to hot tire pickup."
• Slip when wet: Sherwin-Williams cautions that flat, smooth floors "can become slippery" once wet or oily, and says aggregate in the topcoat gives "a modest degree of slip-resistance" while the floor stays cleanable.
• Cure time: at 77 degrees F, ArmorSeal 1000 HS needs 48 to 72 hours before heavy traffic and 7 days to full cure, and Rust-Oleum tells kit buyers that an epoxy coat needs three days before a car goes on it.
• Preparation: Wolverine Coatings states that "a coating's bond strength can never exceed the pull-off strength of the surface to which it is applied," so laitance, the weak top skin of a slab, has to come off first.

Austin heat and the cure: data sheet limits beside the NOAA normals

In Austin the data sheet, not the calendar, decides when epoxy goes down, and several sheets top out below Camp Mabry's summer normal highs. Sika gives Sikafloor-264 an ambient window of 50 to 85 degrees F; Rust-Oleum's EpoxyShield garage kit, technical data ESH-39, asks for 60 to 85 degrees F; Westcoat says not to apply EC-36 above 90 degrees F; Sherwin-Williams allows ArmorSeal 1000 HS up to 120 degrees F. In NOAA's 1991-2020 normals, Camp Mabry's normal high is 93.2 degrees F in June, 96.6 degrees F in July and 97.8 degrees F in August, and the count of days at 90 degrees F or more averages 122.8 a year there, against 123.5 at Austin-Bergstrom. Station air is not slab or garage air, which is why our crew takes its own readings on the day.

Heat also shortens pot life, the time mixed material stays workable. For ArmorSeal 1000 HS, Sherwin-Williams gives 6 hours of pot life at 50 degrees F, which falls to 4 at 77 degrees F and to 2 at 120 degrees F. Sika's Sikafloor-264 starts near 50 minutes at 50 degrees F and is down to roughly 25 at 68 degrees F and roughly 15 at 86 degrees F. The ESH-39 chart gives the mixed kit 2 hours between 60 and 70 degrees F and 1 hour between 81 and 85 degrees F. Laticrete's Spartacote Flex Pure sheet puts the rule in one line: "Increases in temperature and/or humidity will shorten working time, dry time and recoat windows." Mixed epoxy left in the bucket can become very hot "and even begin to emit smoke," Sherwin-Williams adds.

A warm slab also outgasses: air inside the concrete expands as it heats and escapes through a fresh coat as bubbles and pinholes. Sherwin-Williams advises applying a sealing coat "when the substrate temperature is warmest and the slab temperature will be decreasing." Winter brings the opposite limit. In the NOAA normals, Austin-Bergstrom records 33.0 days a year whose low falls to 32 degrees F or below, Camp Mabry 11.9, and ArmorSeal 1000 HS needs 10 days to cure at 50 degrees F but 4 at 120 degrees F. So before any mixing we log three readings, the air, the slab surface and the dew point, and hold off unless the slab sits 5 degrees F or more above the dew point, a margin that ArmorSeal 1000 HS, Sikafloor-264 and ESH-39 each print.

Austin ground: clay east of the escarpment, limestone to the west

The Balcones Escarpment runs through Travis County, and the ground under a garage slab changes across it. The Handbook of Texas calls it "a geologic fault zone several miles wide" that separates the Edwards Plateau in the west from the Coastal Plains. The University of Texas Bureau of Economic Geology says the plateau "is capped by hard Cretaceous limestones," and the NRCS describes Edwards Plateau series such as Eckrant and Brackett as very shallow or shallow soils over limestone. East of the escarpment, on the Blackland Prairies, the same bureau writes that chalks and marls weather to "deep, black, fertile clay soils."

Houston Black is the clay series to know. Its NRCS Official Series Description records "High shrink-swell potential and cracks that are 1.3 to 10 cm (1/2 to 4 in) wide at 30 cm (12 in) depths during dry periods," cracks that "remain open for 90 to 150 cumulative days in most years," and water that enters "rapidly when it is dry and cracked, and very slowly when it is moist." Heiden, a series established in Travis County in 1969, has matching high shrink-swell wording. The NRCS writes about soil, not slabs, while NRMCA's CIP 4 writes about slabs: concrete "deflects depending on load and support conditions," and improper subgrade preparation is among the causes of cracking it lists. Neither document measures what this clay does under a garage slab, which is why the cracks on each floor are checked one by one.

A coating can cover a crack that has stopped moving; it cannot hold one that is still moving. ICRI's terminology calls a dormant crack one "not likely to become active in the future" and an active crack one that is "still moving." Sika says its Sikadur-55 SLV crack healer "is not appropriate for use in dynamic cracks." Joint fillers share the limit: Metzger/McGuire's bulletin T18 says epoxy and polyurea fillers "typically have expansion capabilities of 15% or less," against joints that "will open 50-100% during normal slab shrinkage." Sherwin-Williams warns that coating over a moving joint "can lead to cracks in the surface." So we fill dormant cracks before the primer and say which repairs will still show; for a moving joint, Sherwin-Williams' guidance is a saw cut carried up through the finished floor. Slabs past crack repair are covered under concrete resurfacing.

Doing it yourself or hiring a crew: kit sheets, etching and rules

A garage kit can work, and its data sheet says when. Rust-Oleum designed its EpoxyShield water-based kit (ESH-39) for floors "in good sound condition" that are "free of curing agents and sealers," and says it "is not intended for use on unsound previous coatings or floors that have a moisture problem." Its application line reads: "Apply only when air, material, and surface temperatures are between 60-85 degrees F (15-29 degrees C) and the surface temperature is at least 5 degrees F (3 degrees C) above the dew point." It caps relative humidity at 85 percent, and its dry film is 3.0 to 3.5 mils. Stonhard sums up the category: "DIY epoxy kits are made for light-duty spaces like home garages or basements." Before buying, tape down a plastic sheet as ASTM D4263 describes; Sherwin-Williams calls that test qualitative, a sign of moisture rather than a measurement.

Preparation is where a kit job and a crew job part ways. Stonhard writes that crews use diamond grinders and shot blasters "to ensure proper adhesion," and that without that step DIY floors "can peel, bubble, or crack." Acid etching is the other method. ICRI grades prepared concrete by its concrete surface profile (CSP), a ten-step scale of roughness from CSP 1 to CSP 10, and labels its CSP 1 chip "acid-etched" and its CSP 2 chip grinding. Sherwin-Williams says etching "tends to produce a CSP-1 to CSP-2 profile, which is suitable only for very thin systems" and cannot remove curing compounds. Sika "does not recommend acid etching," and Wagner Meters lists avoiding it among its defenses against osmotic blisters.

Grinding concrete raises crystalline silica dust. The federal silica standard for construction, 29 CFR 1926.1153, holds an employee's exposure to no more than 50 ug/m3 (micrograms per cubic meter of air), averaged over an 8-hour shift. Its Table 1 gives walk-behind floor grinders two options, an integrated water feed or the maker's dust collection system with a filter of 99 percent or greater efficiency, plus a HEPA-filtered vacuum between passes indoors. Our grinders run with that dust collection. The rule binds employers; the dust in a home garage is no different. As for licensing, the Texas Department of Licensing and Regulation's program list shows nothing for flooring, coating, painting or general contractors, and the Sunset Advisory Commission records the Texas Residential Construction Commission's abolition on September 1, 2009. The Texas Attorney General advises: "Insist on a written contract that specifically states what the contractor will do."

Cleaning, recoats and the lifespan question

Care comes down to keeping grit, harsh chemicals and stiff tools off the film. Sherwin-Williams' cleaning guide for its flake system runs in five steps, sweeping, application, agitation, dwell time and removal, and warns: "Never use a mop to clean a floor that is greasy or oily." Laticrete recommends "a neutral pH cleaner" and walk-off mats inside and outside. Tennant's maintenance guide calls for soft nylon brushes and white or red pads and says stiff ones "will dull or scratch your coated surfaces." Westcoat lists aggressive chemicals, excessive pressure washing, abrasive pads and incompatible cleaners as things that "may damage the finish or shorten the life of the coating."

What shortens a floor's life is mostly what lands on it. Stonhard names heavy traffic, chemical attack, grit worn across the surface, rough brushes and sunlight. Tire stains can be beyond cleaning: the Tennant maintenance guide calls tire plasticizer stains impossible to remove and says recoating the area is the only way to clear them, and of rubber burns from spinning tires it says, "In most cases, these cannot be removed." Its prevention is a barrier between the tires and the coating. A garage with its door open to the afternoon sun adds the UV exposure the epoxy sheets warn about, which is the case for a UV-stable topcoat over the epoxy.

No independent body in the sources we cite puts a number of years on an epoxy garage floor. Where makers do print years, they attach them to particular systems: Stonhard writes that urethane floors "can be expected to last from 10 to 20 years," and Westcoat's Liquid Dazzle specification says that metallic system should be resealed "every 3 to 5 years depending upon traffic and UV exposure." Stonhard's article on epoxy gives no figure and ties life to buying "the correct floor for your space" and using and cleaning it properly. Recoating renews a sound floor: Stonhard says recoating "every few years can help restore its gloss and protective properties," and Westcoat says the timing depends on the system, use, exposure, traffic and maintenance history.
